Wooden Frame Sander

Speed Up Your Finishing of Frames

UI - UFS

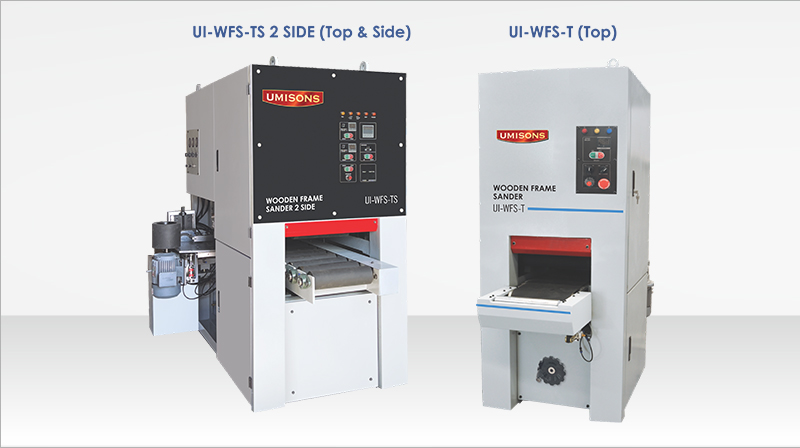

Wooden Frame Sander - Umisons Industries

Our Wooden Frame Sander Machine is specially designed for the “Solid Wood Frame Making Industry”.

It gives even more quality to a wooden frame and saves time.

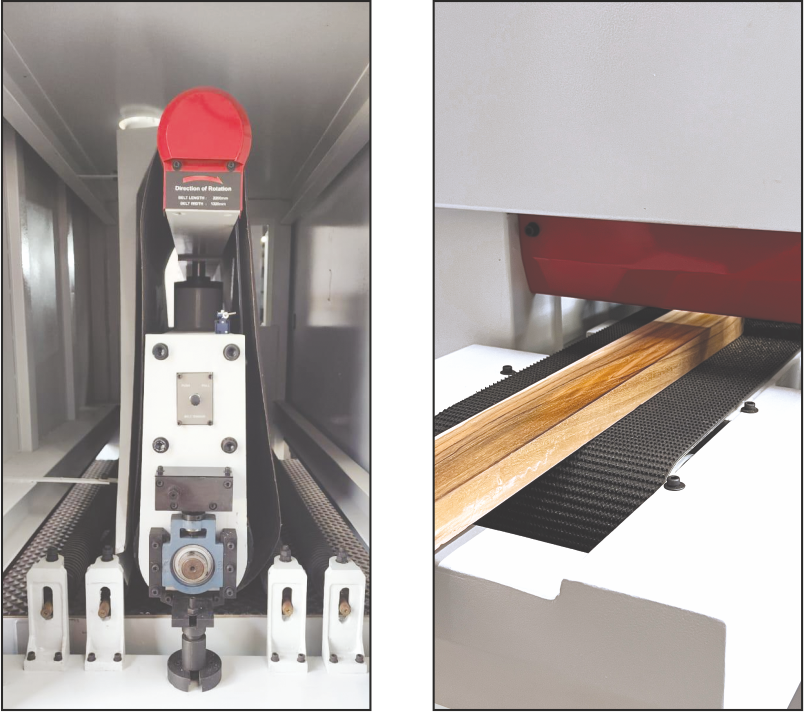

Wooden Frame Sander - Image 1

Technical Specification

Specification Parameters
Max. Working Length > 400 mm
Max. Working Width > 200 mm
Max. Working Thickness 15 mm to 100 mm
Speed Of Feeding Variable
Resolving Speed Of Sanding Belt 1440 RPM
Size Of Sanding Belt 230 mm X 1550 mm
Roller Dia 160 mm
Motor Power 6 HP
Power Supply Required 3 Phase
Compress Air Required 5 kg /  cm²
Dust Attraction Required 3 HP
