Cold Press 100 Ton Machines Manufacturer Ahmedabad, India

Cold Press 50 Ton Machines Manufacturer Ahmedabad, India - Umisons Industries

Technical Specification

Specifications Unit Technical Parameters
 TCP – 50  TCP – 100
Max. Load work table ton 50 100
Platen Size mm 2500 x 1250
Max. Platen Opening mm 1000
No. of hydraulic cylinders nos 2 4
Bore Size of Hydraulic Cylinders mm 125
Total Power – 3 Phase hp 5

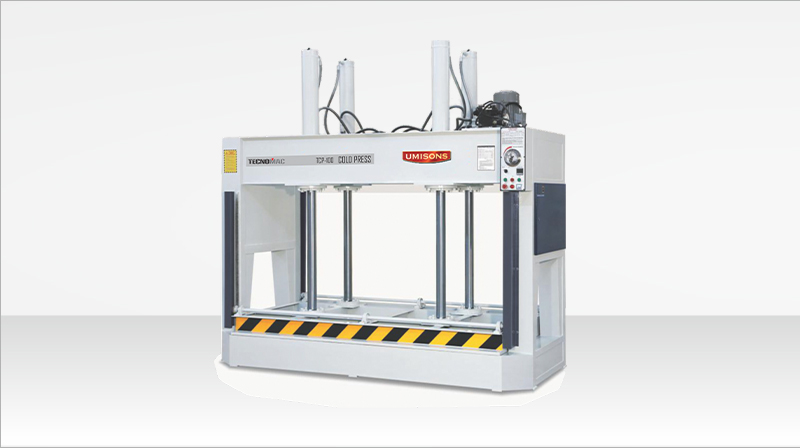

CT 100 Ton Image 1
CT 100 Ton Images
  • Heavy-duty platen designed to take maximum compression loads.
  • Pressing platen is synchronized on the rack & pinion for smooth up-down movement with eccentric rollers.
