Auto Panel Assembler

Speed Up For Production of Panels

UI - APA

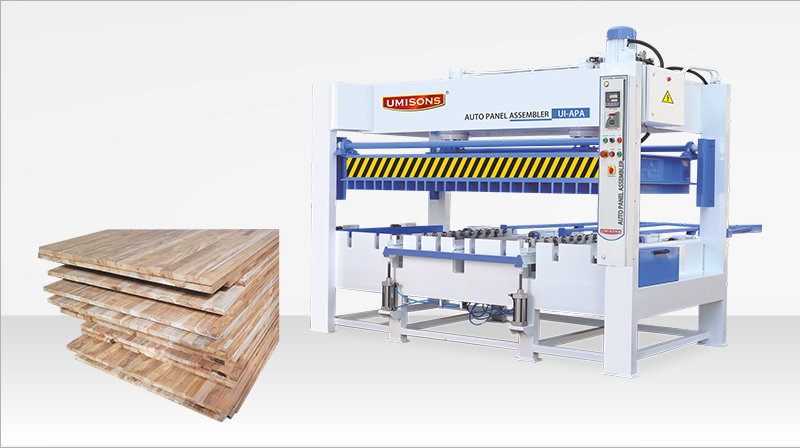

Auto Panel Assembler - Umisons-Industries
Auto Panel Assembler - PLC Control

This Machine is operating by PLC Based Auto And Manual Controls.

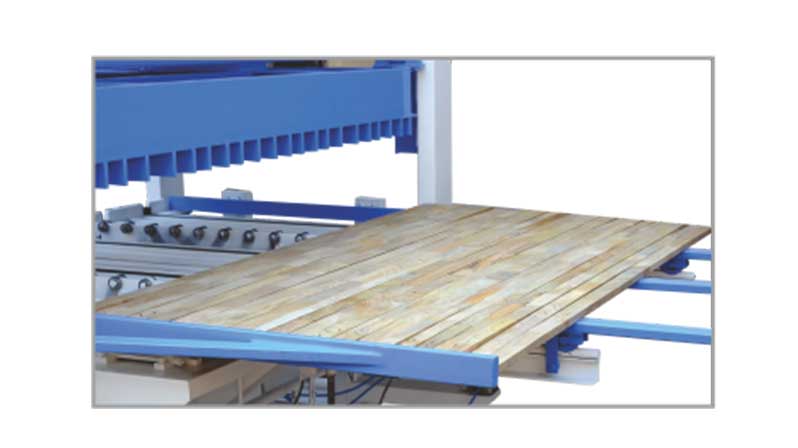

Auto-Panel-Assembler-Parts-1-Umisons-Industries

Put the glued strips on trolley and start function UI-APA, trolley automatically sets all strips in the pressing platform and hydraulic cylinder the sheet.

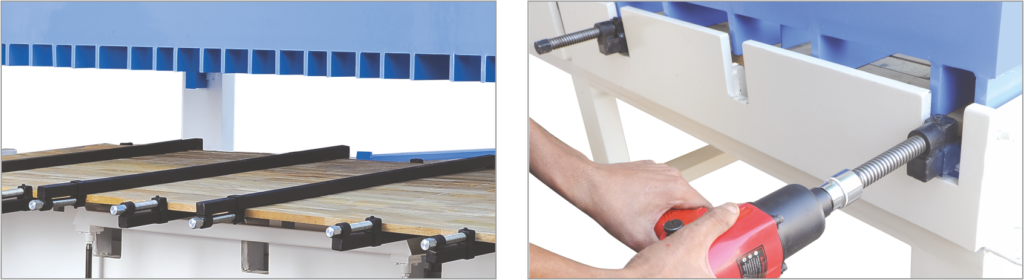

Auto Panel Assembler - Screw Clamp-on wooden sheet top & bottom side

Give pressure on wooden planks by hydraulic cylinder then fix the screw clamp-on wooden sheet top & bottom side by pneumatic gun. Put it outside from for natural dry as per adhesive curing time.

Technical Specification

 Panel Assembler
Max. Working Length 2500 mm
 Max. Working Width 1250 mm
Max. Working Thickness 50 mm
Power Required (For Hydro Powerpack) 3 HP / 2 HP
Compress Air Required 10 kg /  cm²

Speed Up Your Production Of Panels

  1. Specially Design for solid wood Panel industries who needs high production of finger joint board.
  2. This machine can make more than 400 boards per shift
  3. Heavy duty Structure of machine gives more accuracy and Strength kind of wood.
  4. This machine is operating by PLC based auto and manual controls.

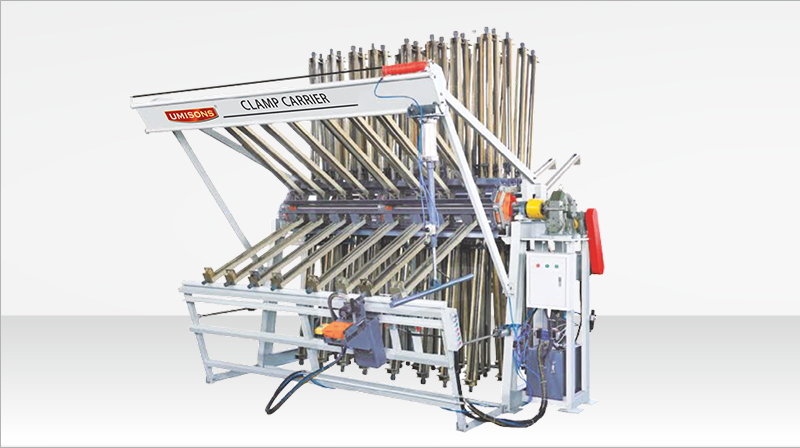

Clamp Carrier (Hydraulic Pneumatic)

Layer : 8 / 10 / 14 / 20

UI - CC
Clamp Carrier (Hydraulic Pneumatic)

Easy & Fast Operating & Maximize Productivity

Technical Specification

Panel Assembler
Max. Working Length 2500 mm
Max. Working Width 1320 mm
Max. Working Thickness 80 mm
Power Required 8 HP
